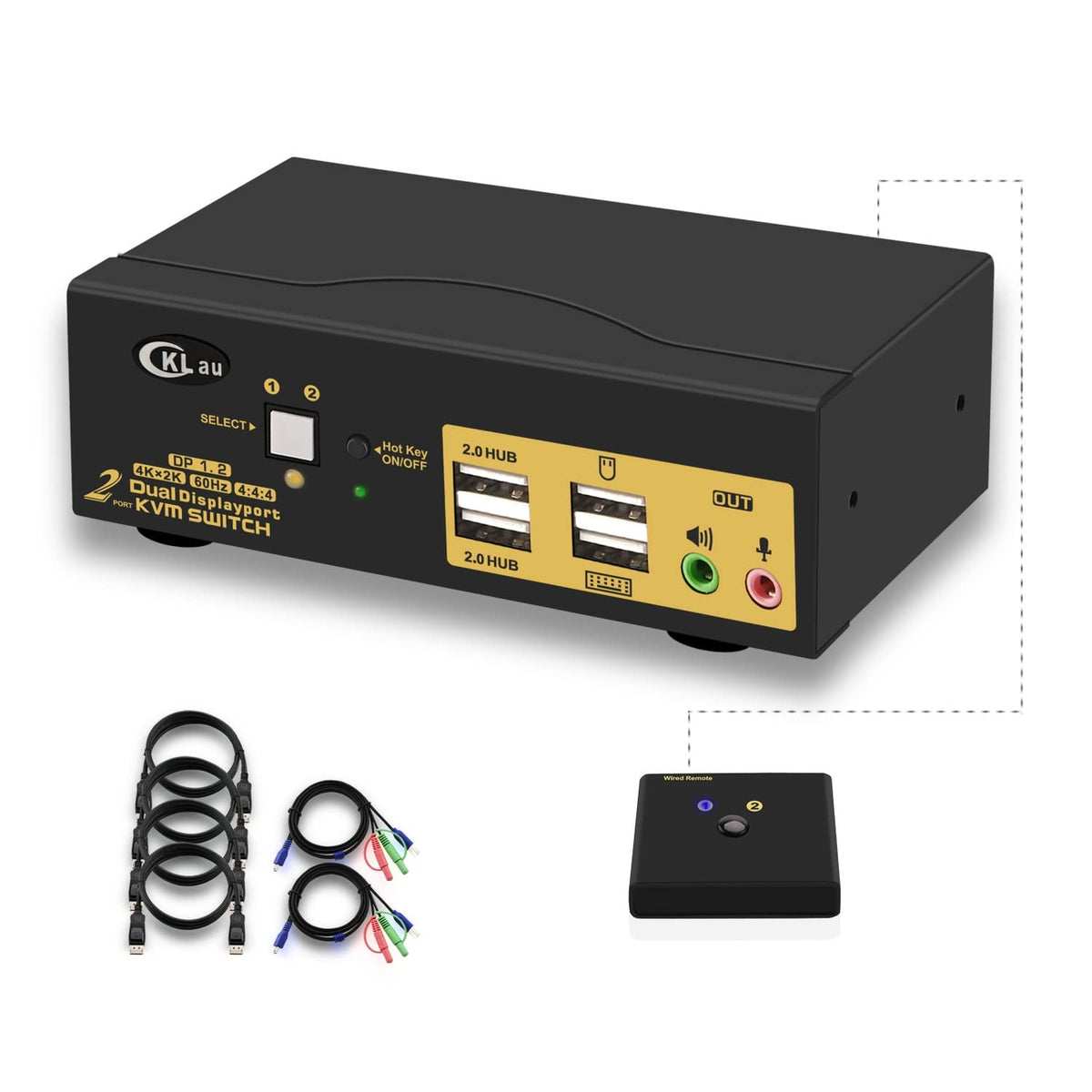

2 Port 4K@60Hz DP 1.2 KVM Switch with Audio Microphone Output and USB 2.0 Hub T564291
2 Port 4K@60Hz DP 1.2 KVM Switch with Audio Microphone Output and USB 2.0 Hub T564291
1. Dual Monitor KVM Switch Display Port: 2 displayport interface computers sharing one set of keyboard & mouse, 2 monitors, audio, microphone and 2pcs USB2.0 peripheral devices. (Tips: 1. this KVM switch is DP1.2 60Hz version, it doesn't compatible DP1.4 devices and 75Hz, 100Hz, 120Hz, 144Hz refresh rate; 2. This KVM switch required your computers with dual video output.)
2. KVM Dual Monitor KVM Switch DP: Max resolution up to 4096x2160@60Hz 4:4:4, compatible 3840x2160@60hz and lower resolution. Supports HDCP 2.2, HDR10. Supports wireless & wired keyboard & mouse, Apple keyboard, Unify keyboard, 16:9 widescreen and 21:9 ultra-wide monitors. With auto detection, auto scan, waking up, with memory function in case of power-down.
3. Monitor Switch for 2 Computers: Four switching way optional: Hotkey switching(Num Lock + Num Lock + 1 / 2 + Enter, or Ctrl + Ctrl + 1 / 2 + Enter, or Scroll Lock+ Scroll Lock+1 / 2 + Enter), mouse switching (click mouse wheel 2 times), manual button switching, wired remote push button switching.
4. 2 Port KVM Switch Displayport: Three display model optional: extended display, mirror display and video wall display. Drive-free for Windows 10/7/2000/XP/Vista, Linux, Mac, Debian, Ubuntu, Fedora, Raspbian and Ubuntu.
5. Display Port KVM Switch USB: Supports separate audio and microphone output, and 2 USB 2.0 HUBs for connecting different USB peripherals like webcam, headset, flash drives, printers and scanners for easy editing between different computers.
Dual Monitor Switch KVM Switches Dual Monitor Switch for 2 Computers 4K KVM Switch Computer Switch for 2 Computers KVM 2 Monitors 2 Computers KMV Switches 4K KVM Computer Monitor Switch USB KVM Switch 2 Computers USB KVM Switch Displayport KVM USB
Installation Step;
1. Turn off all your devices and unplug all the cables;
2. Plug DC5V 2A power adapter into KVM switch and AC socket;
3. Plug displayport cables, special USB cables into KVM switch and your computers;
4. Plug displayport cables into KVM switch and your monitors;
5. Plug mouse into mouse slot of KVM switch, plug keyboard into keyboard slot of KVM switch;
6. Plug speaker / other USB 2.0 peripheral / wired remote push button switch into KVM switch if needed;
7. Turn on KVM switch;
8. Turn on your computers.
Package include:
1 x 2 port displayport KVM switch
2 x special USB cables
4 x displayport cables
1 x DC 5V 2A Power adapter
1 x manual
1 x wire remote push button switch
Tips:
If your computers without displayport port, you should purchase the reliable converter with chip. The quality of converter may affect the function of KVM switch.
