3 Row Aluminum Radiator with Electric Fan Shroud Thermostat Kit K118058
3 Row Aluminum Radiator with Electric Fan Shroud Thermostat Kit K118058
Core Dimension (H x W): 17 3/4'H x 25'W x 1 3/4'T; Overall Dimension (H x W): 20 1/2'H x 29 5/8'W
Oil cooler specifications: ￠26×292×M12×1.25（Z）
Hose Locations: IN: 1 1/4'Passenger / OUT: 1 3/8'Driver
Carefully crafted to exceptional OE standards for precise fit（No installation instructions, professional installation is highly recommended!）
3-5 business day fast shipping from NJ or CA; Manufacturer Warranty: 2 Years

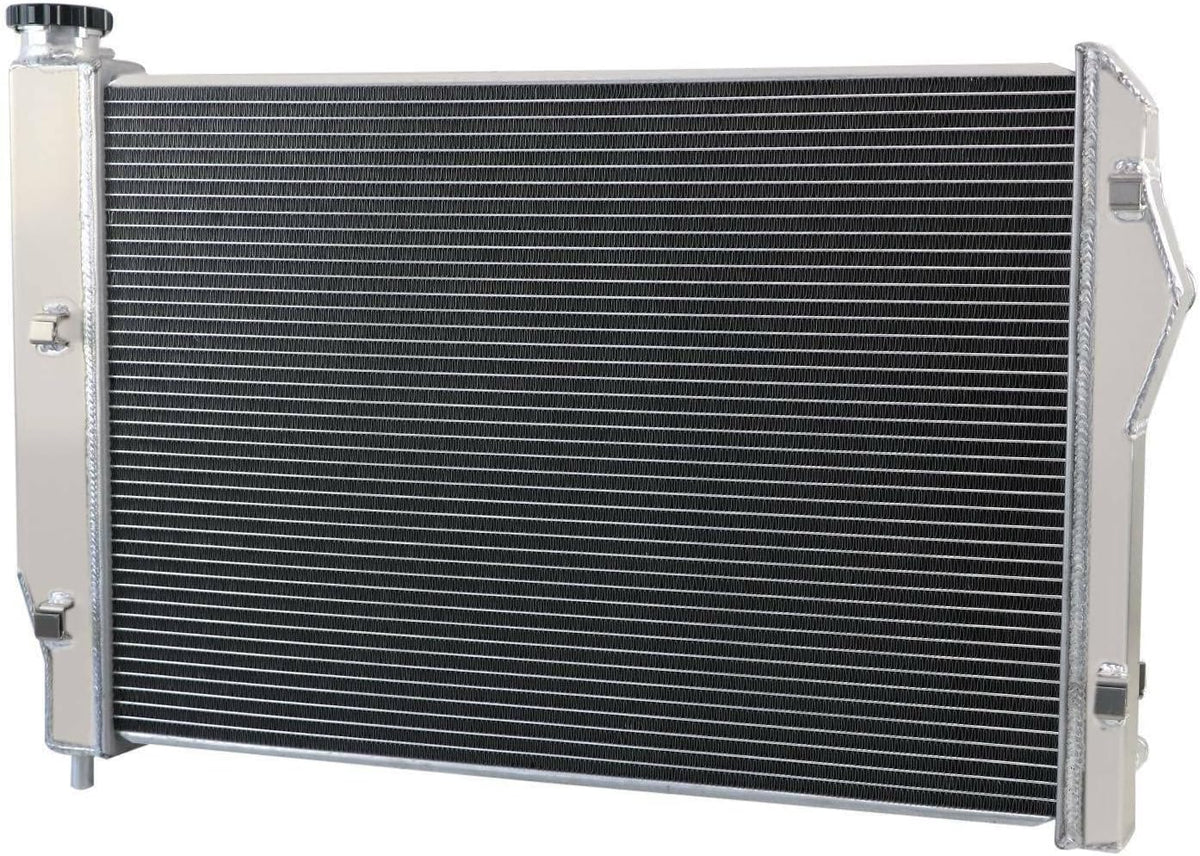

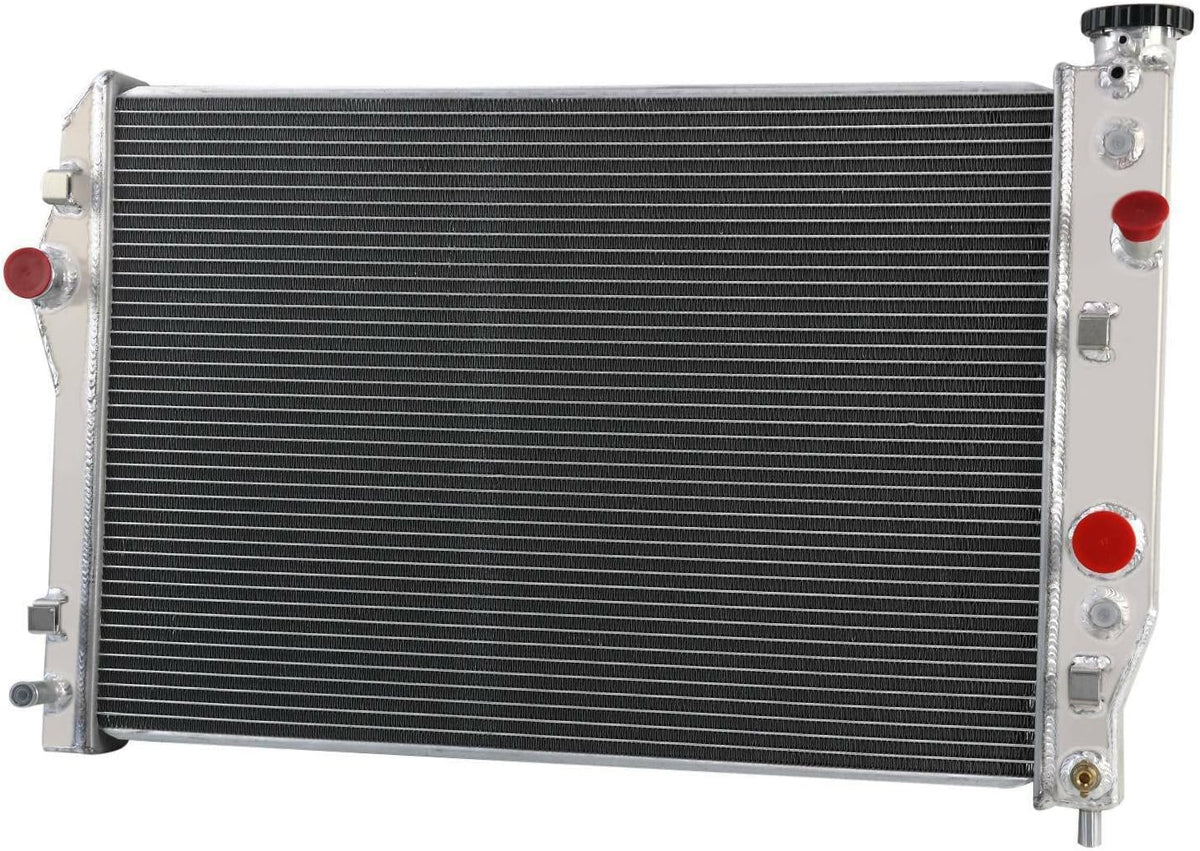

Radiator Details:
Type: 3 Core
Core Thickness: 1 3/4''
Color: Silver
Core/ Tank Material: All Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Upgraded Cap: CNC Machined Filler Neck and Cap
Upgraded Drain Plug: OEM Style Brass Petcock Drain
Delivery: Local Delivery
Fitment Type: Direct Replacement
Radiator Flow: CROSS FLOW
Trans Cooler: YES
Mounting Type: PIN MOUNT
Manufacturer Part Number: 2365,SBR2365,1486,CC2365,CU2365,PR2365A,CU2471,2939,DPI2365
Vehicle Fitment:
1993-2002 CHEVY CAMARO 5.7L V8
1993-2002 PONTIAC FIREBIRD/TRANS AM 5.7L V8

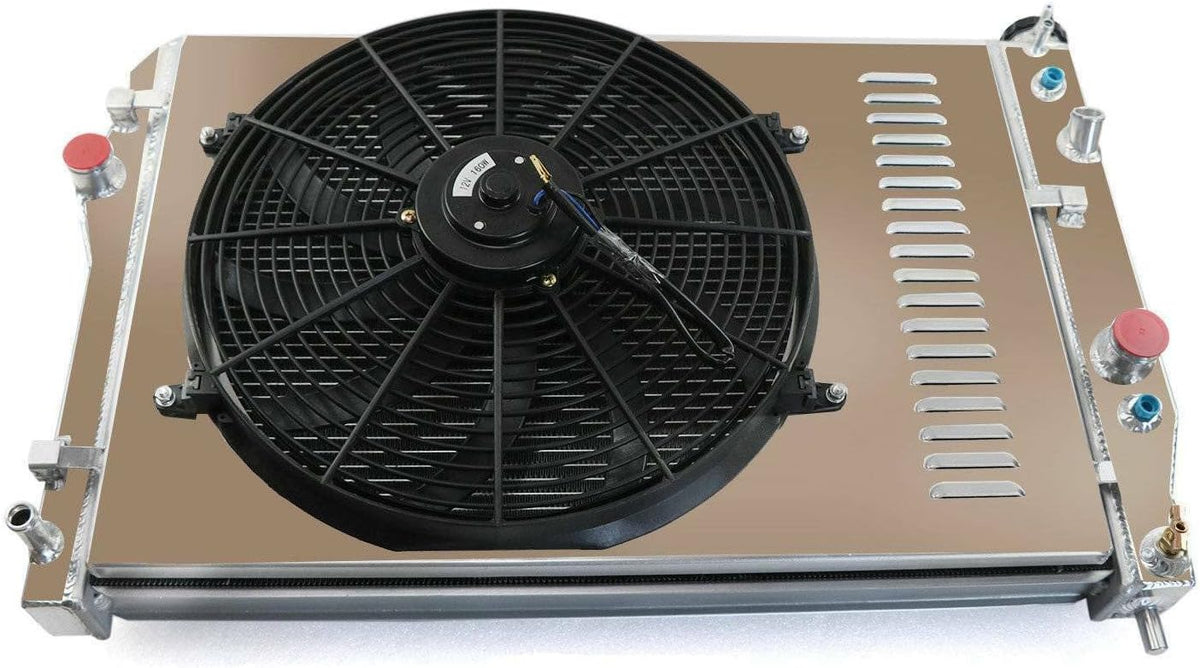

FAN SPEC:
Maximum Fan CFM: 2000±200
Fan Diameter (in): 16.050 inches
Thickness (in): 2.790 inches
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans and pull air in through radiator.

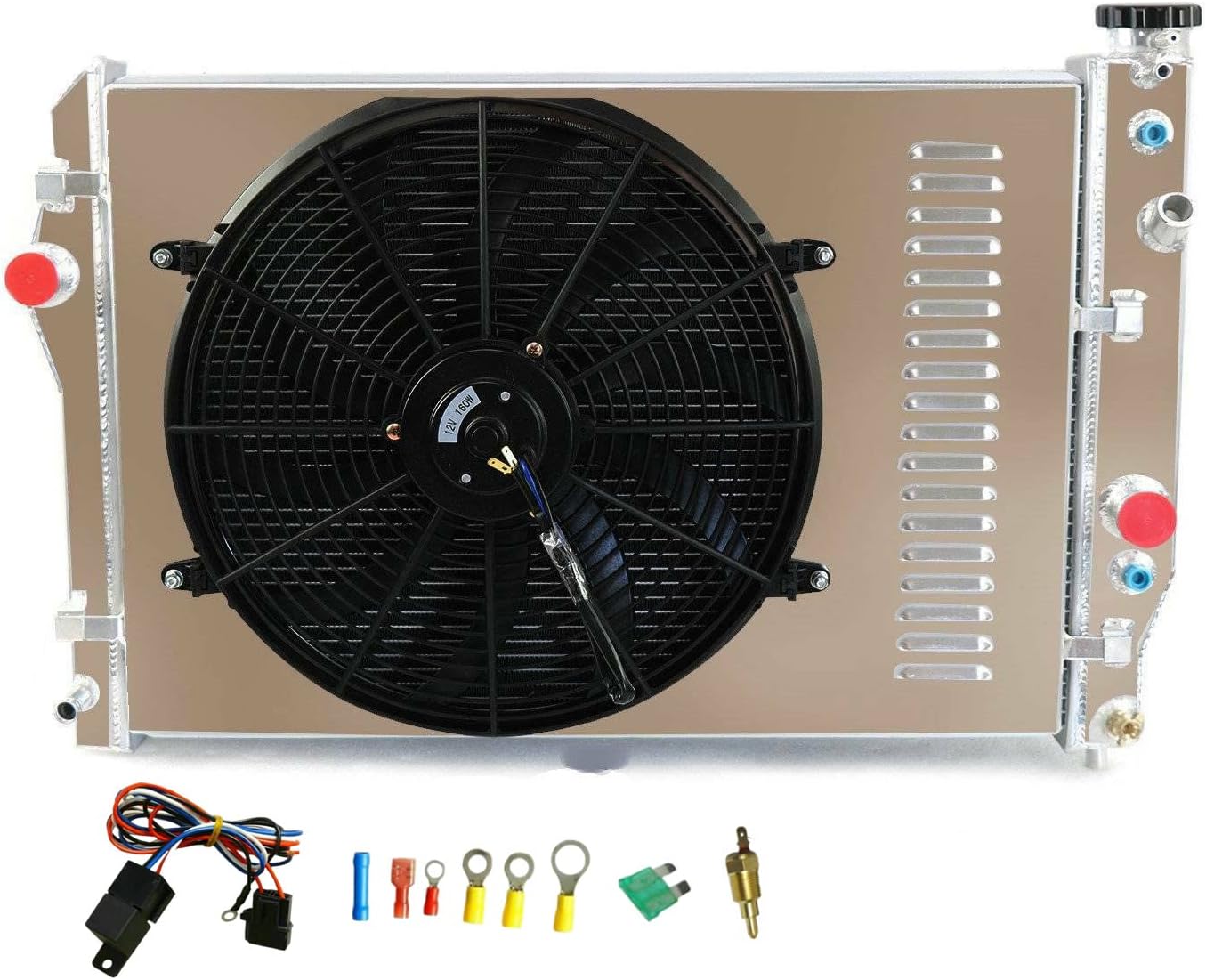

Package Include:
1 X 3-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
1 X 16' Fans (Includes mounting kits)
1 X Thermostat Relay Kit
